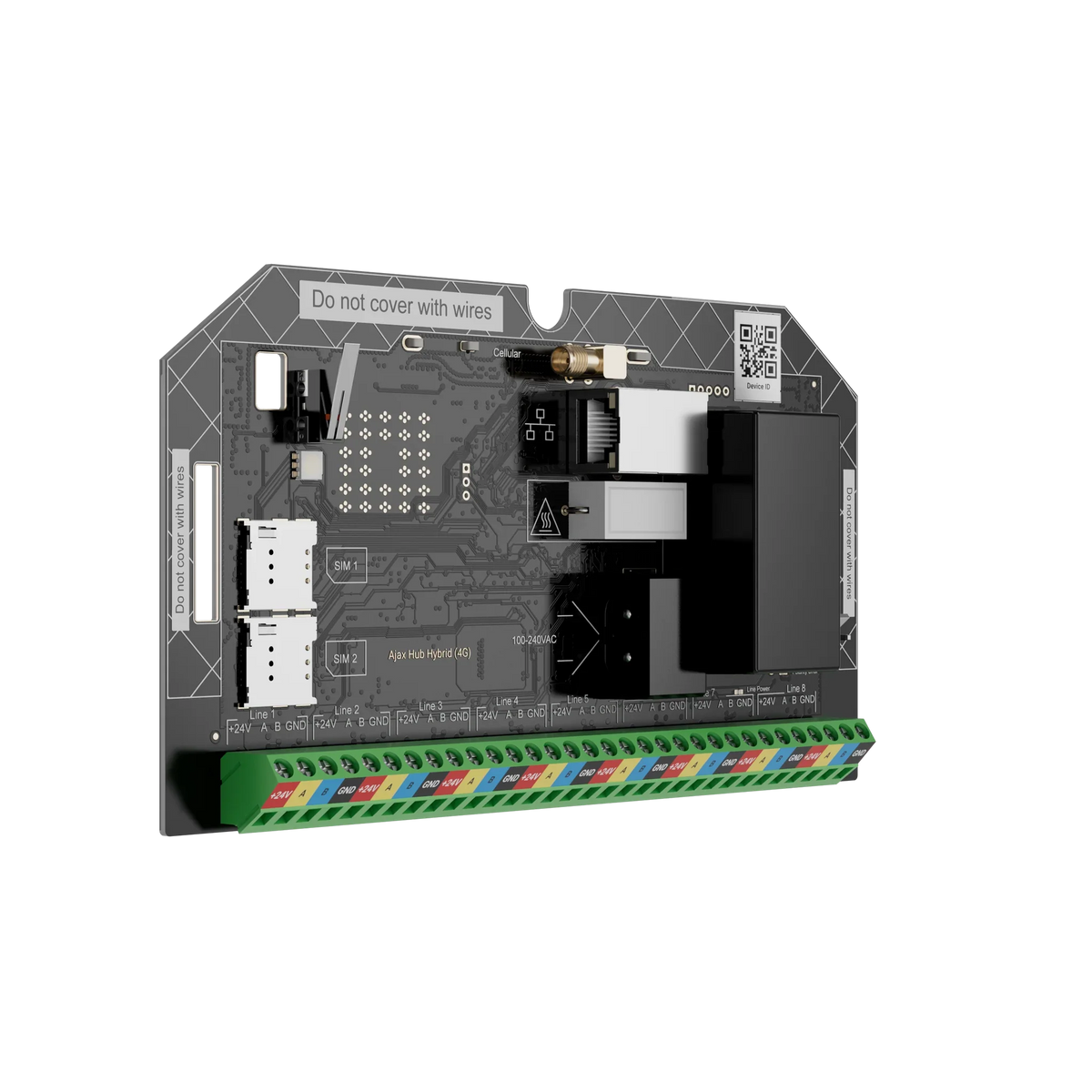

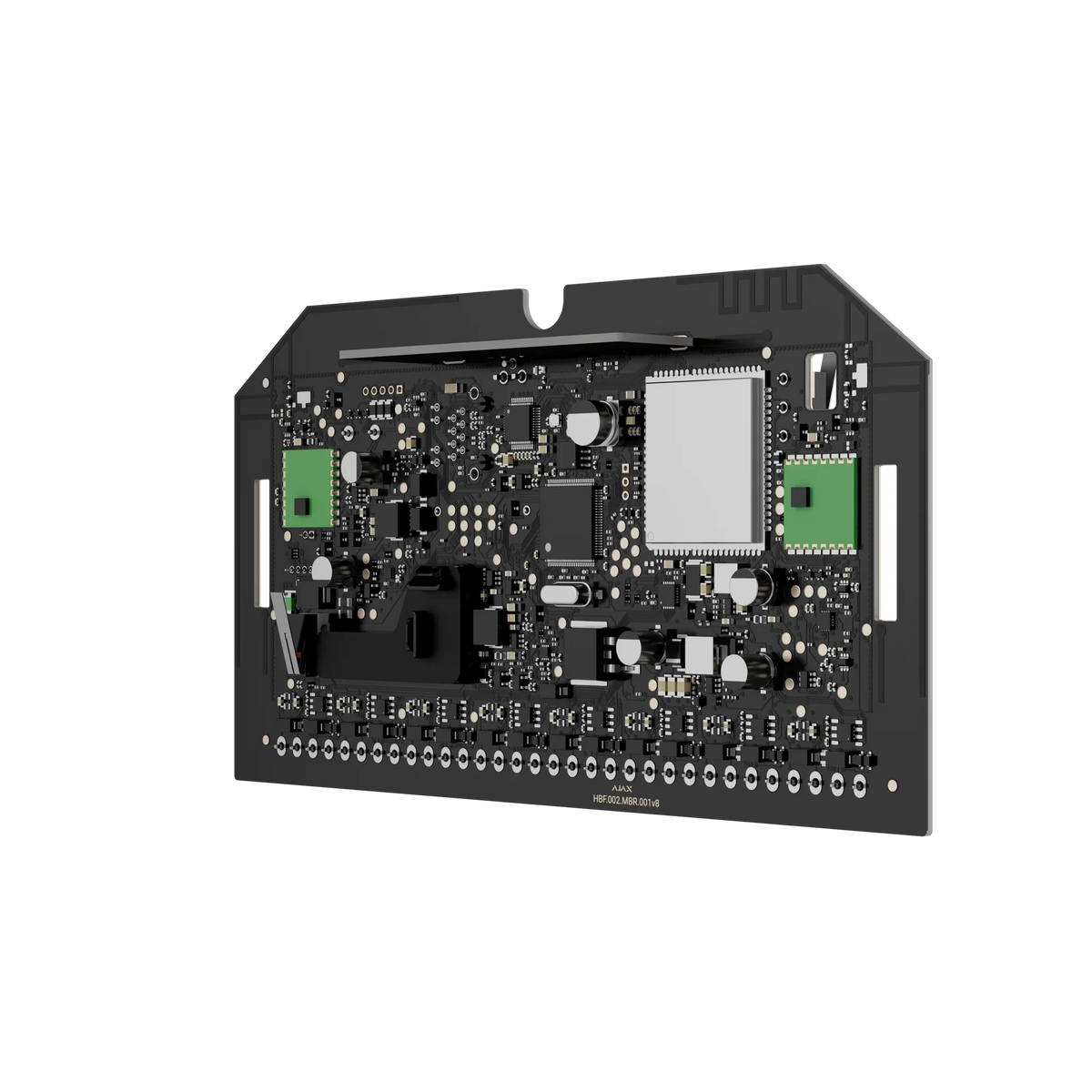

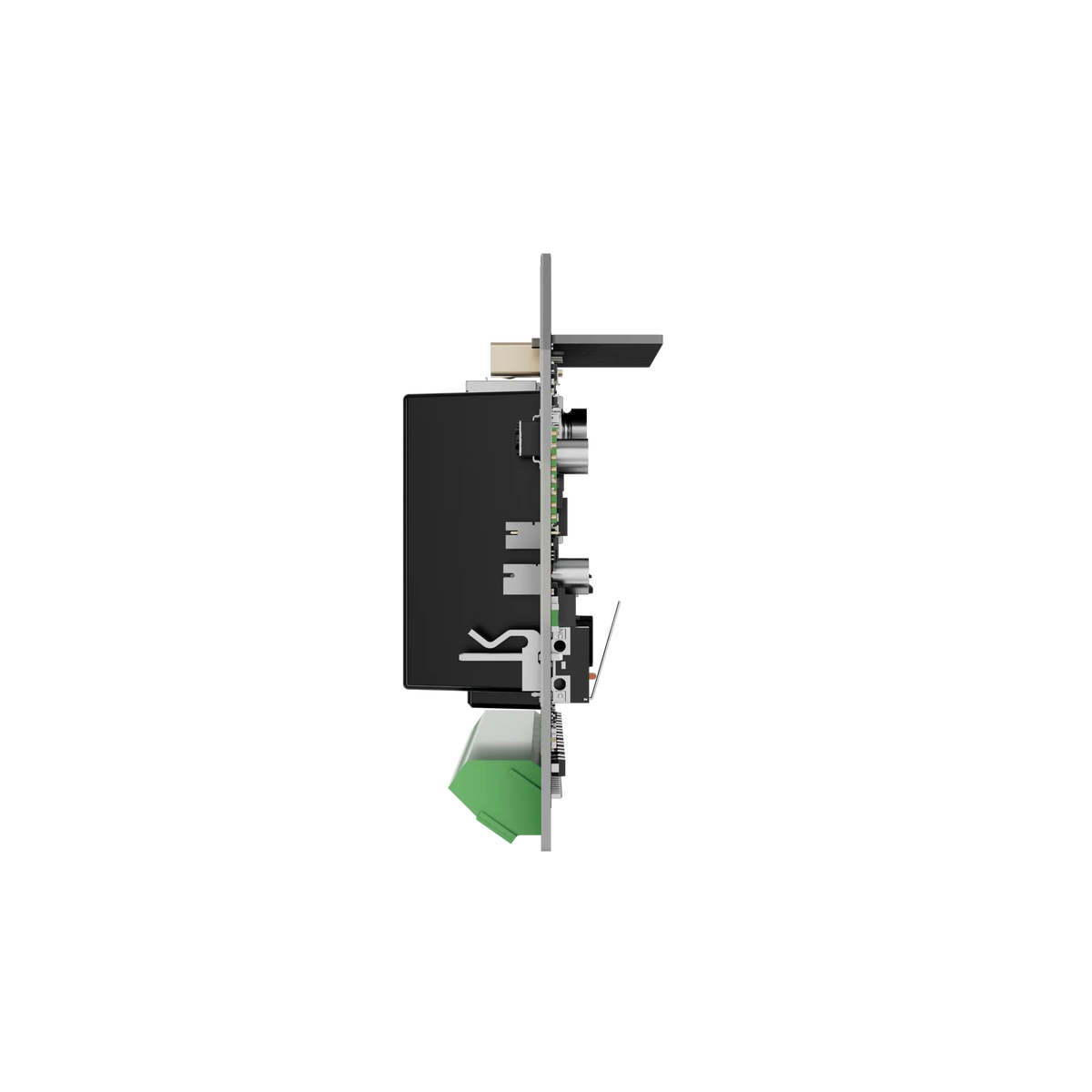

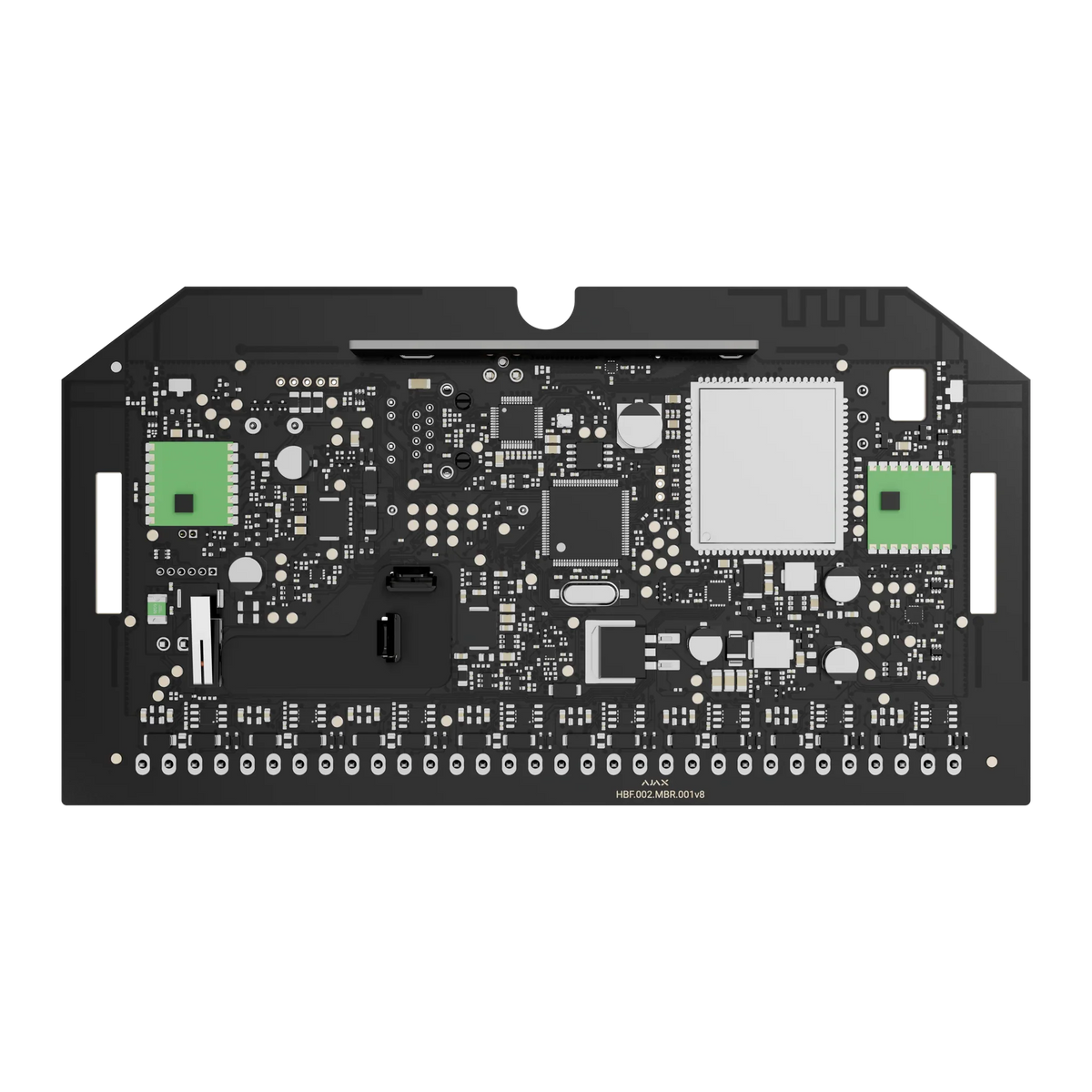

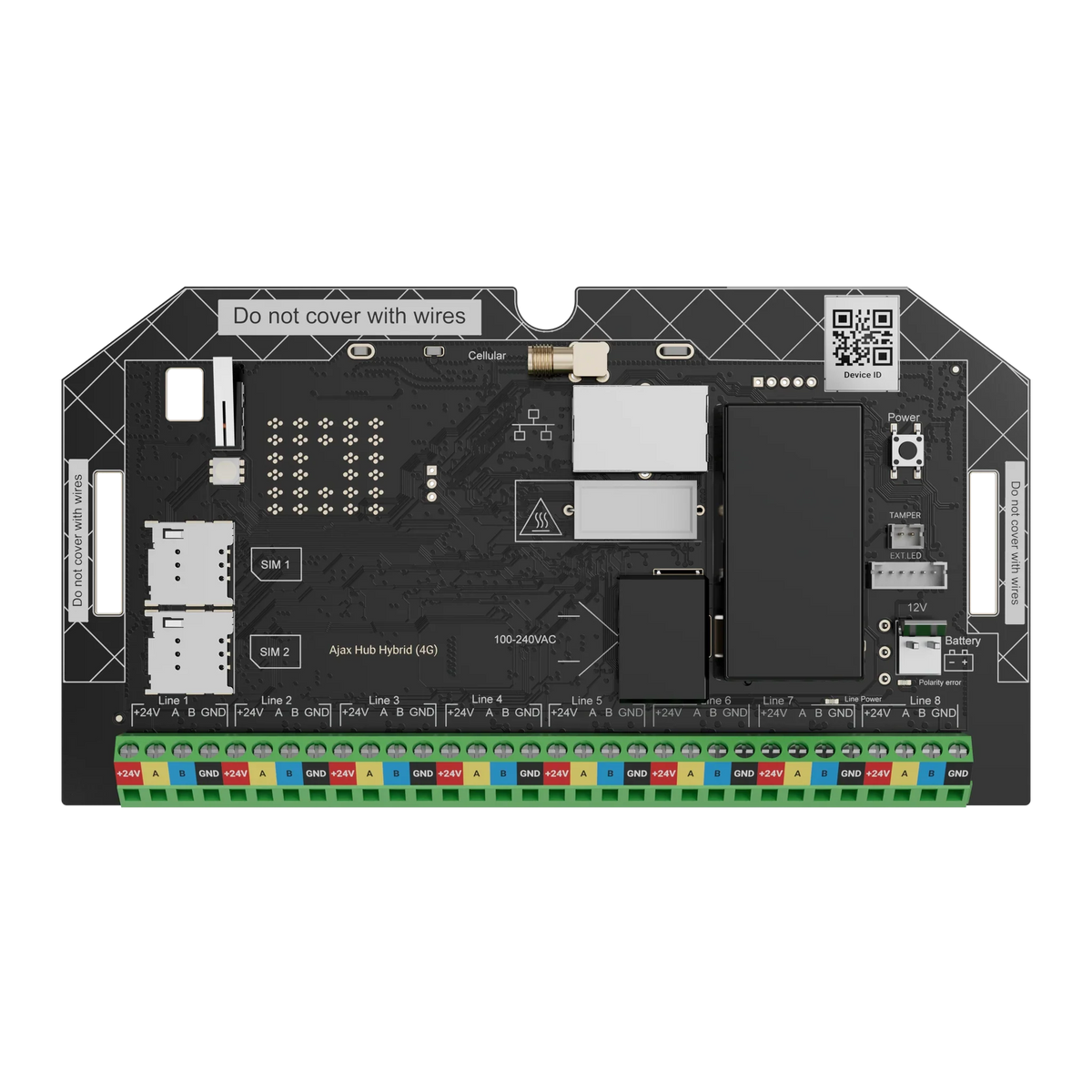

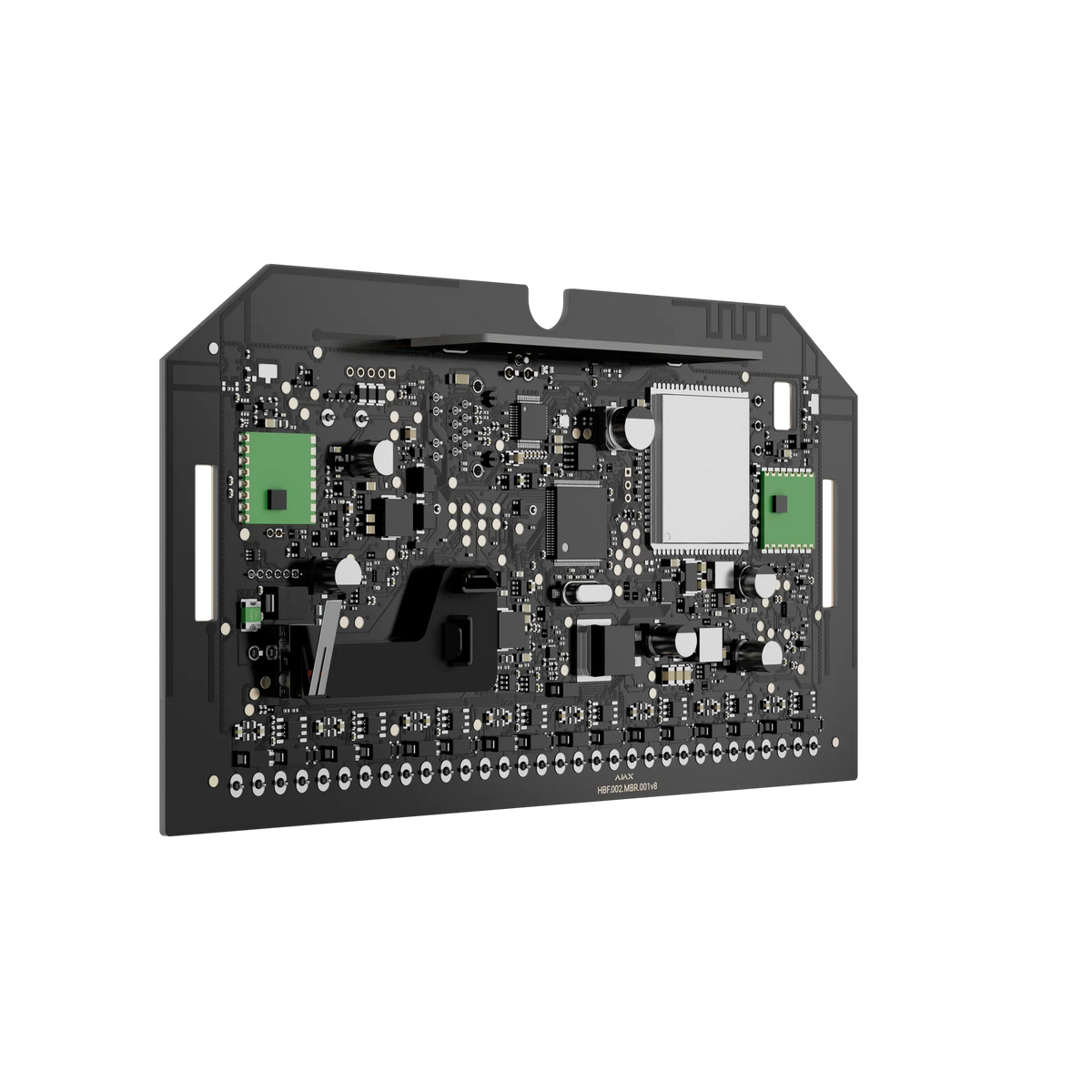

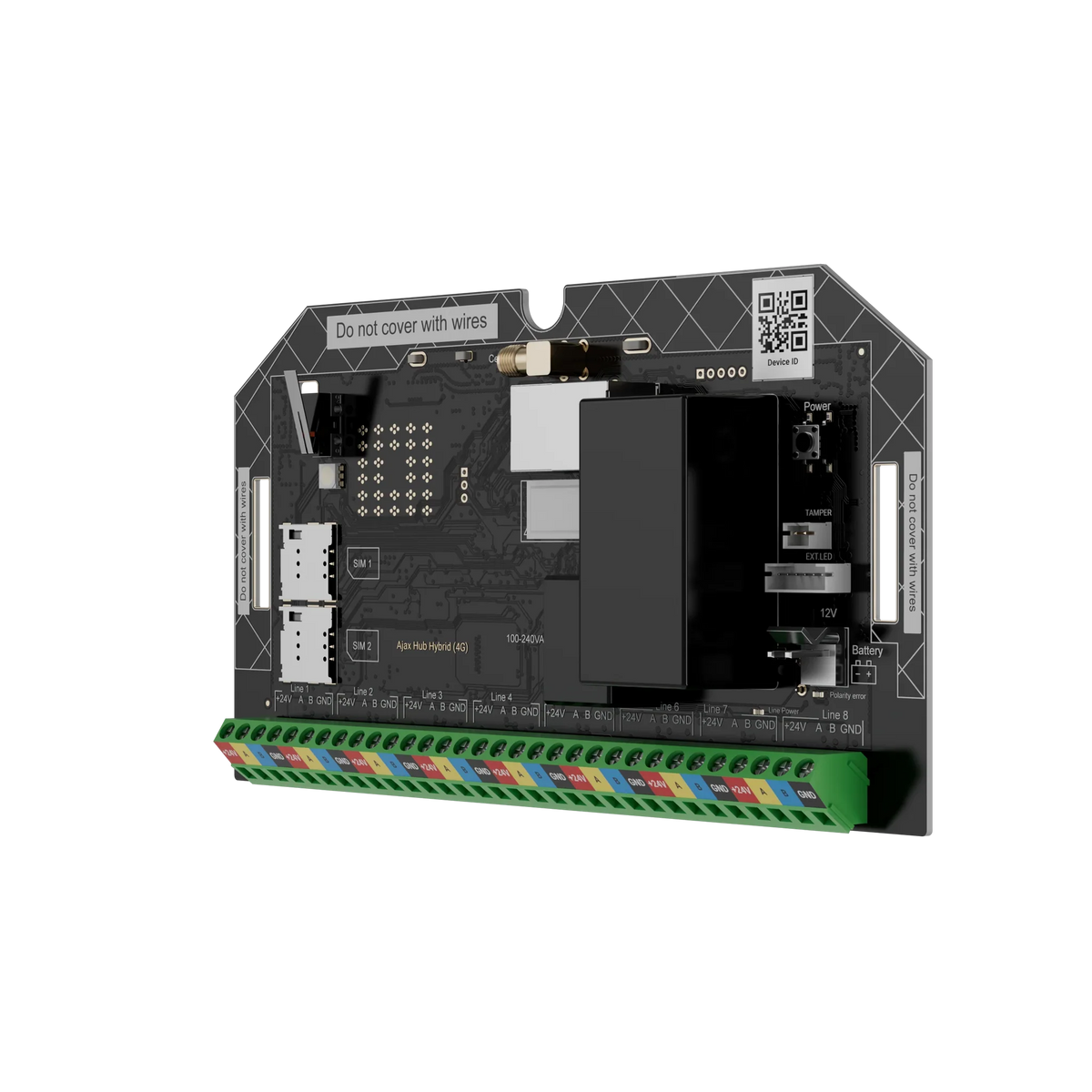

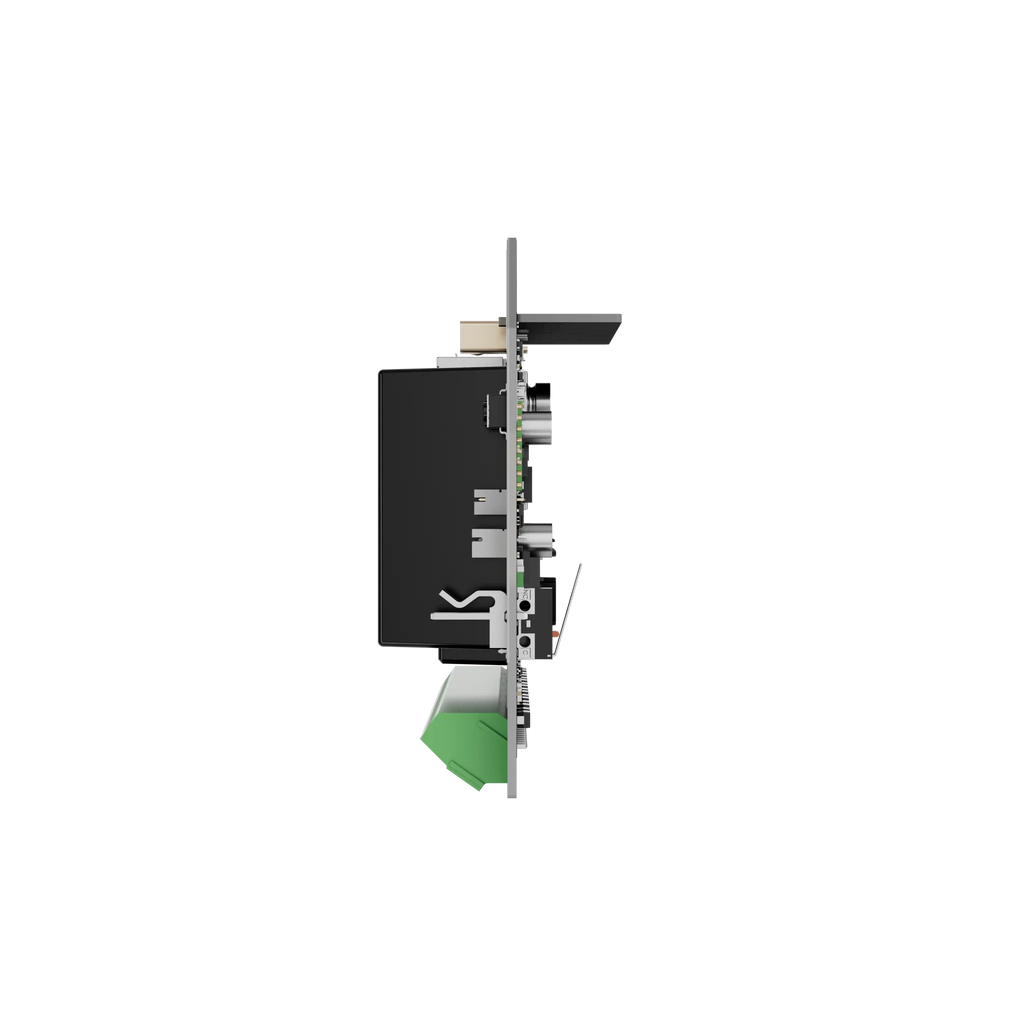

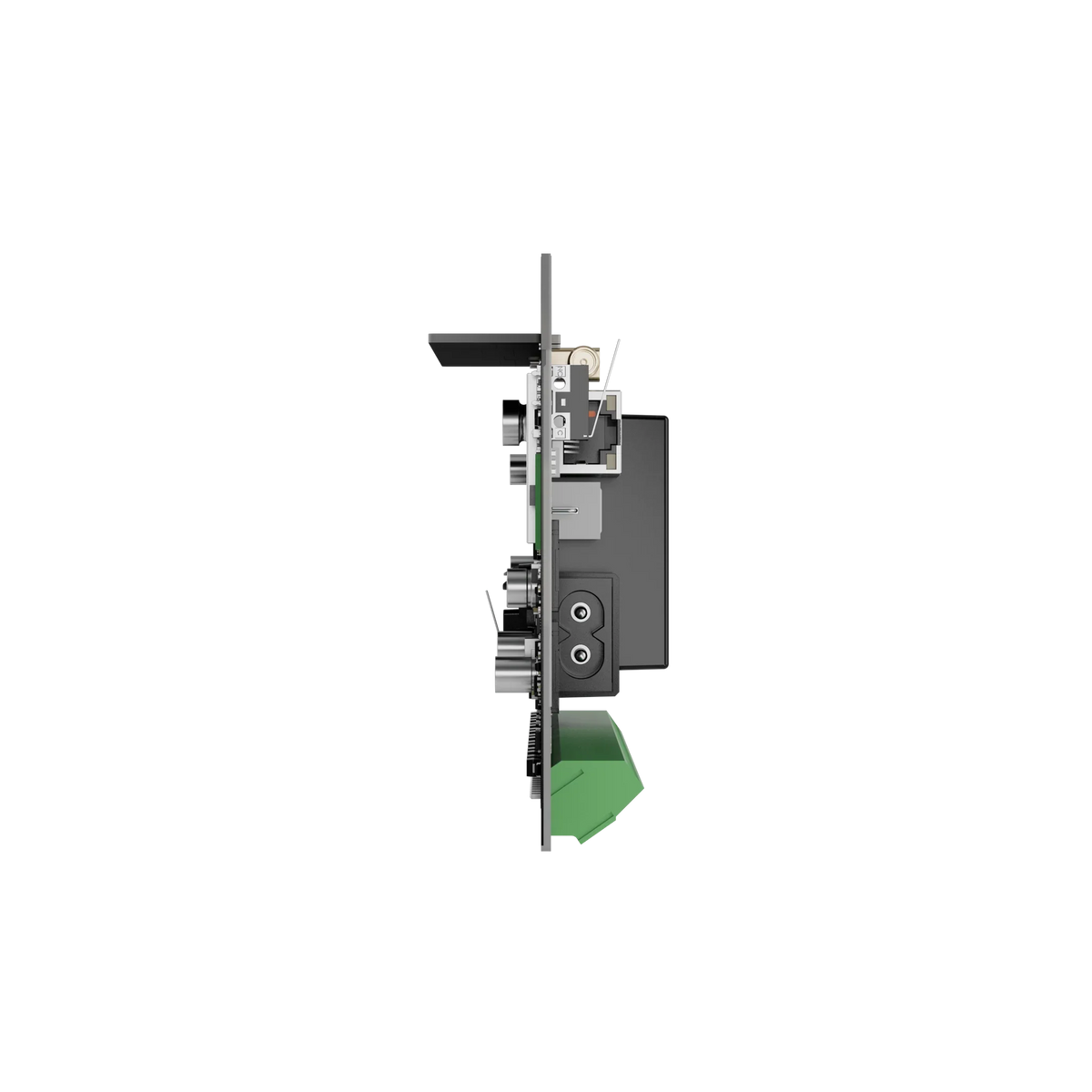

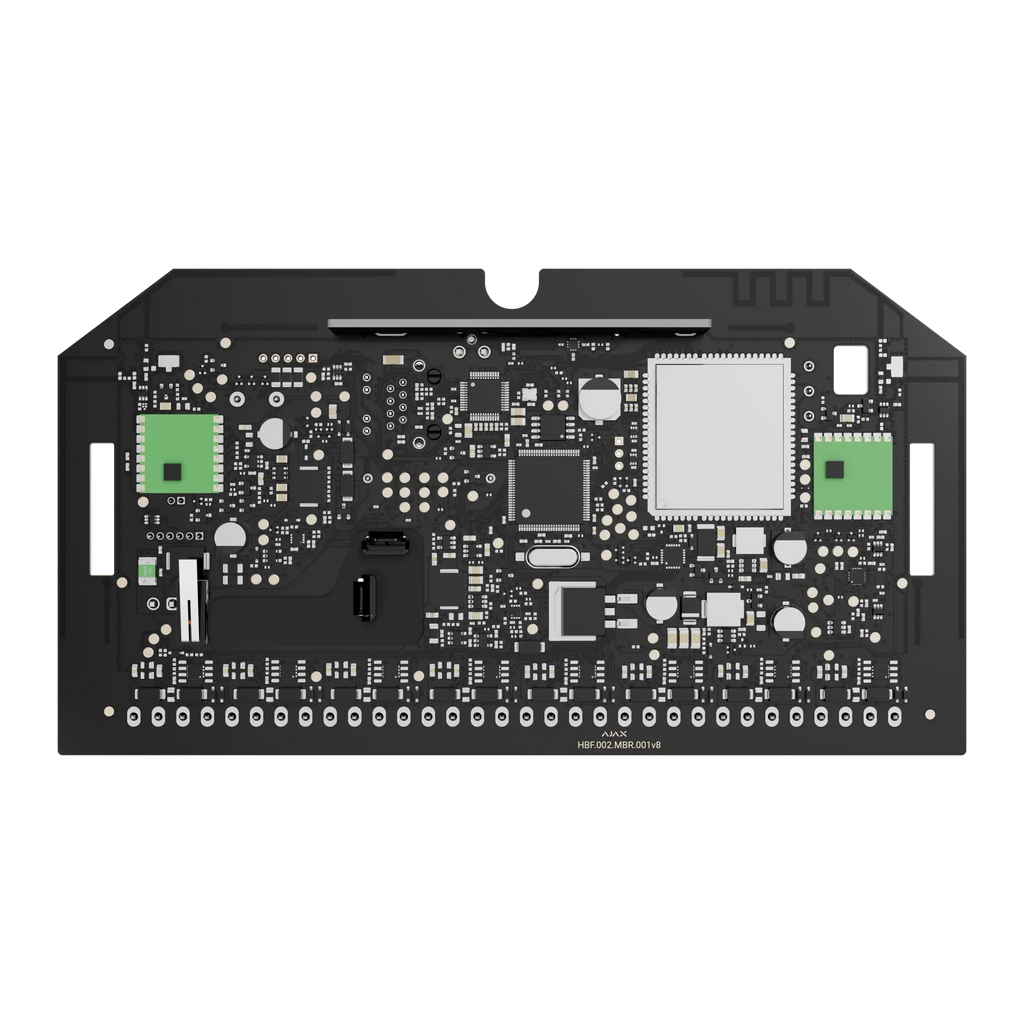

The Ajax Superior Fibra Hub Hybrid (4G) Without Casing White (AJAX#124108) is a professional hybrid security control panel PCB designed for installation inside Ajax Case D, delivering advanced intrusion protection, photo verification, and flexible support for both Fibra wired devices and Jeweller wireless devices. With Ethernet and dual SIM 4G LTE connectivity, this powerful hub board provides reliable alarm transmission, smart automation, and scalable integration for up to 100 Ajax devices. Built for professional security projects requiring custom enclosure installation, the Superior Hub Hybrid without casing is ideal for commercial, industrial, and advanced residential systems.

What’s Included in the Box

• Ajax Superior Fibra Hub Hybrid (4G) (without casing)

• Power Cable

• Screw Terminal Block Adapter (for INCERT compliance only)

• Battery Connection Cable

• LED Board

• LED Board Connection Cable

• Ethernet Cable

• Eight 120 Ω Termination Resistors

• Quick Start Guide

Note:

• Case D is sold separately

• Backup battery is not included

Main Features

Hybrid Wired and Wireless Security Architecture

• Supports Fibra wired devices

• Supports Jeweller wireless devices

• Hybrid system allows wired and wireless devices in any proportion

• Ideal for custom installations in Ajax Case D

Designed for Professional Integration

• Board-only version for installation in enclosure

• Compatible with Case D

• External LTE antenna connector

• Tamper board connector for Case sabotage monitoring

Powerful System Capacity

• Supports up to 100 Ajax devices

• Up to 5 range extenders

• Up to 10 sirens

• Up to 50 wired keypads with built-in buzzer

• Up to 50 users

• Up to 50 rooms

• Up to 9 security groups

• Event log for up to 1,000 events

Advanced Video Integration

• Supports up to 36 Ajax NVRs

• Supports up to 224 Ajax cameras via Ajax NVRs

• Supports up to 492 standalone Ajax cameras

• Supports up to 10 third-party IP cameras via RTSP

• Supports up to 224 third-party IP cameras via ONVIF and Ajax NVRs

Automation Functions

• Up to 32 automation scenarios

• Automation by alarm

• Scheduled automation

• Reactions to arming/disarming

• Temperature, humidity, and CO₂ triggers

• Button and LightSwitch activation

Multi-Channel Communication

• Ethernet connection up to 100 Mbps

• Dual micro-SIM cellular backup

• Supports 2G / 3G / 4G LTE

• Automatic switching between SIMs and communication channels

Fibra Wired Communication

The Fibra protocol provides reliable wired communication for professional alarm systems.

Fibra Highlights

• 8 Fibra lines

• Line length up to 2,000 m

• Compatible with 4-core cable

• Device power supply up to 14.4 W

• Output voltage range 23–25.1 V DC

• Maximum rated output 0.53 A

Supported Topologies

• Beam (Radial wiring)

• Ring

• Tree

If a ring line is broken, the system splits it into two working segments and continues operating while notifying users and monitoring stations.

Wireless Communication

Jeweller Technology

• Two-way encrypted communication

• Radio communication range up to 2,000 m

• Frequency hopping anti-jamming protection

• Advanced anti-sabotage features

Wings Technology

• Photo and large data packet transmission

• Radio communication range up to 1,700 m

• Encrypted communication

• Data package reload in case of transmission errors

• Photo delivery check

Photo Verification

The hub supports visual alarm confirmation with compatible Ajax detectors.

Supported Photo Types

• Photo by alarm

• Photo by scenario

• Photo on demand

• Photo by schedule

Photo Specifications

• Delivery time up to 9 seconds

• Resolution up to 640 × 480 pixels

• From 1 to 5 photos in a series

Detailed Specifications

Sabotage Protection

• Tamper connector for Case lid and detachment monitoring

• Device authentication against spoofing

• Frequency hopping for anti-jamming

• Jamming alerts sent in as little as 30 seconds

• Notification to all users and monitoring company on signal loss or interference

Warranty

24 Months Manufacturer Warranty

The Ajax Superior Fibra Hub Hybrid (4G) Without Casing is covered by a 2-year manufacturer warranty against defects in materials and workmanship.

Brand – Ajax Systems

Ajax Systems is a leading global manufacturer of professional-grade security technology, trusted by installers, monitoring companies, and businesses worldwide. Ajax solutions combine wired and wireless security innovation, encrypted communication, photo verification, and advanced automation for modern intrusion protection.

Practical Use Scenarios

The Ajax Superior Fibra Hub Hybrid (4G) Without Casing (AJAX#124108) is ideal for:

• Professional security installations using Case D

• Commercial alarm systems

• Industrial facilities

• Retail security systems

• Large homes requiring hybrid wired and wireless protection

• Retrofit projects combining old wiring layouts with modern wireless devices

• Installations needing custom enclosure configuration

Datasheets & Resources

• Tech specs Superior Superior Hub Hybrid (4G) (without casing)

  Superior Hub Hybrid (4G) (without casing) user manual

Excellence for the Australian and New Zealand Market

This product is well suited to the Australian and New Zealand professional security market, where hybrid alarm systems, cellular backup, and scalable wired infrastructure are essential.

Key advantages include:

• Suitable for professional-grade security installations

• Supports communication and alarm monitoring workflows commonly used in Australia and New Zealand

• Designed for advanced projects requiring Fibra wired and Jeweller wireless integration

• Sourced through authorised brand representatives

• Covered by manufacturer-backed warranty and support

• Ideal for commercial, industrial, and premium residential projects across AU and NZ

FAQs – AJAX#124108

What is the AJAX#124108 Superior Fibra Hub Hybrid (4G) without casing?

The AJAX#124108 is a hybrid Ajax control panel board designed for installation inside Case D, supporting both Fibra wired devices and Jeweller wireless devices.

Does the AJAX#124108 come with a casing?

No, the AJAX#124108 Superior Fibra Hub Hybrid (4G) without casing is supplied as a board-only version and is intended for installation in Case D, which is sold separately.

How many devices can the AJAX#124108 support?

The AJAX#124108 supports up to 100 Ajax devices, including wired Fibra devices and wireless Jeweller devices in any combination.

Does the AJAX#124108 support LTE backup communication?

Yes, the AJAX#124108 includes dual micro-SIM slots and supports 2G, 3G, and 4G LTE communication for alarm transmission backup.

Can the AJAX#124108 support photo verification?

Yes, the AJAX#124108 Superior Fibra Hub Hybrid (4G) without casing supports photo verification with compatible Ajax detectors, including photo by alarm, scenario, on demand, and schedule.

What enclosure is required for the AJAX#124108?

The AJAX#124108 is designed specifically for installation in Ajax Case D, which must be purchased separately.

How long can the AJAX#124108 run on backup battery?

The AJAX#124108 can provide up to 60 hours of autonomous operation when used with a compatible 7 Ah backup battery, depending on system configuration.

Does the AJAX#124108 support third-party IP cameras?

Yes, the AJAX#124108 supports third-party IP cameras via RTSP and larger ONVIF-based integrations through Ajax NVRs.
