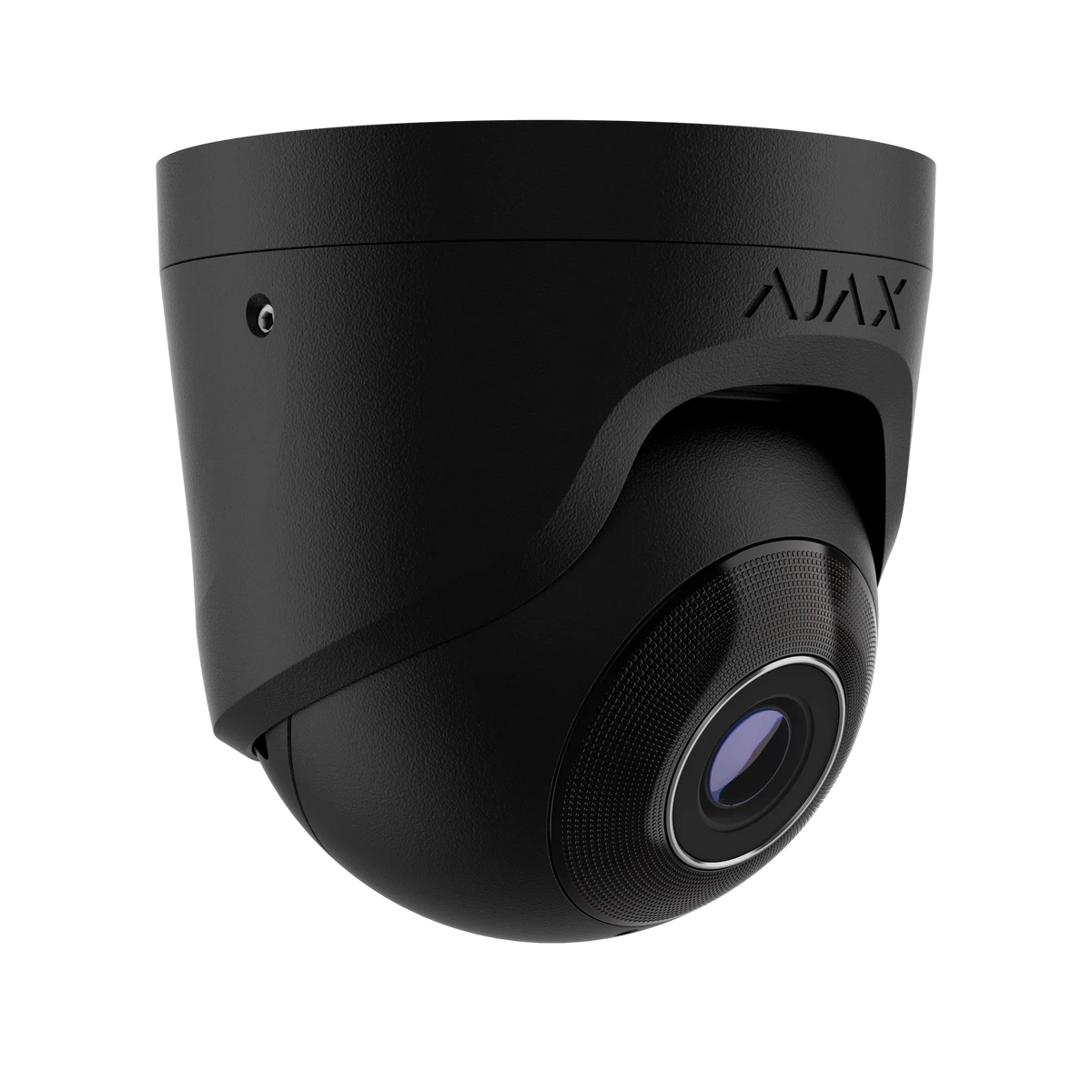

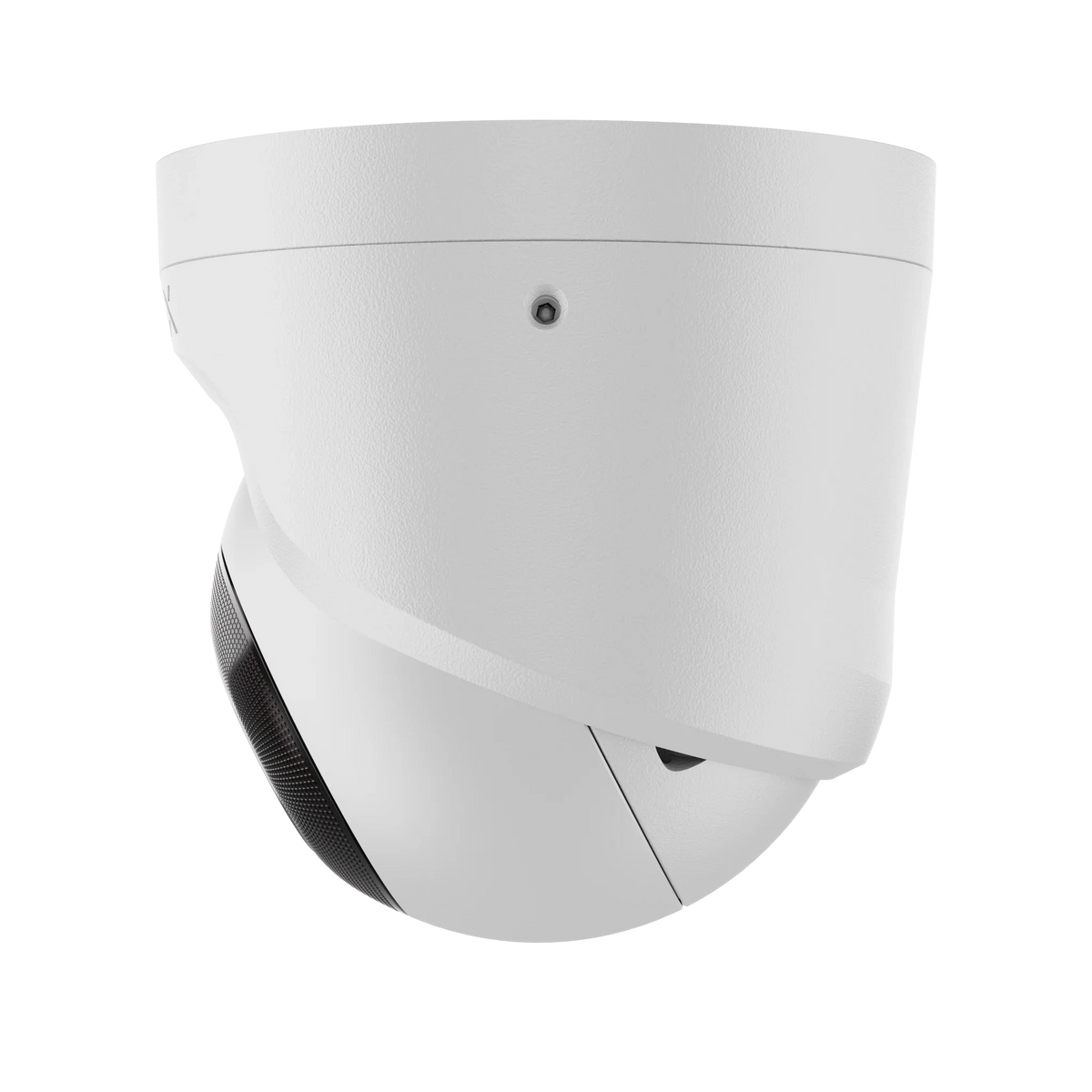

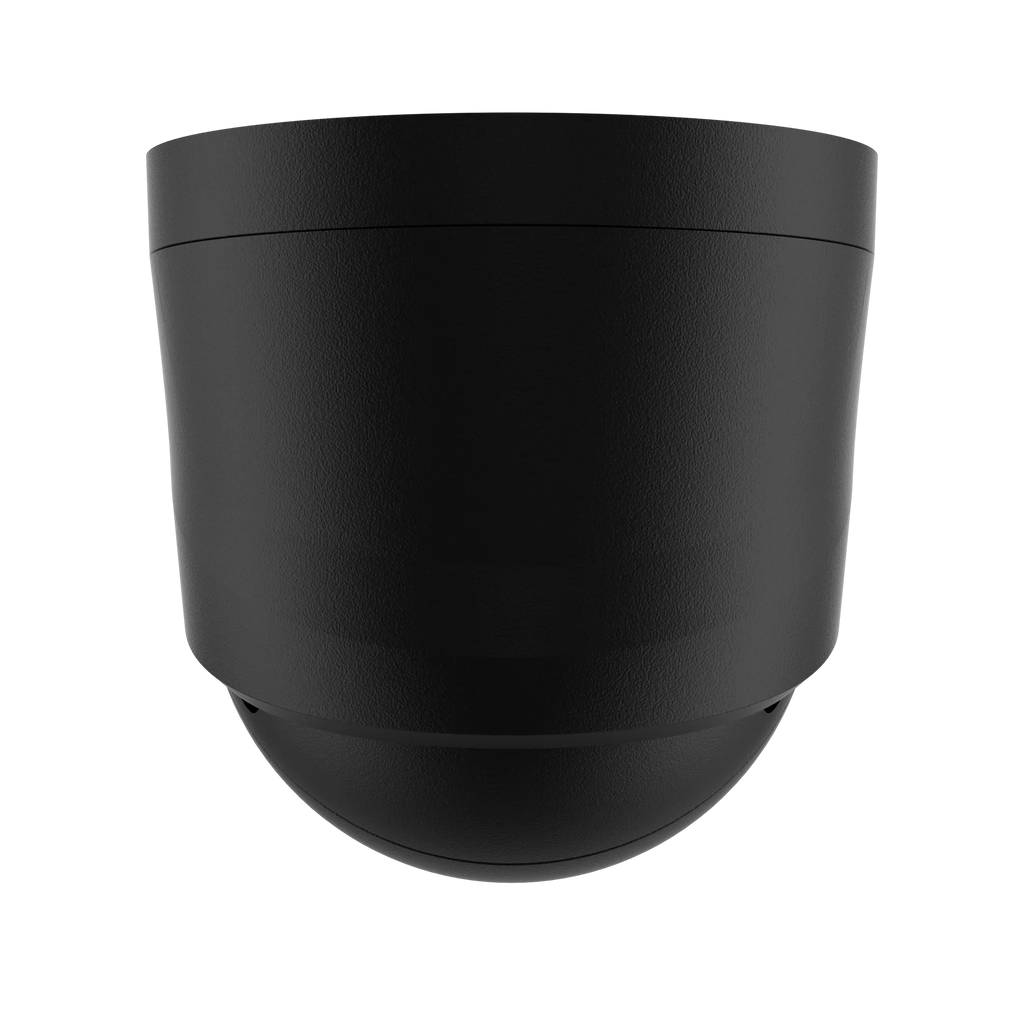

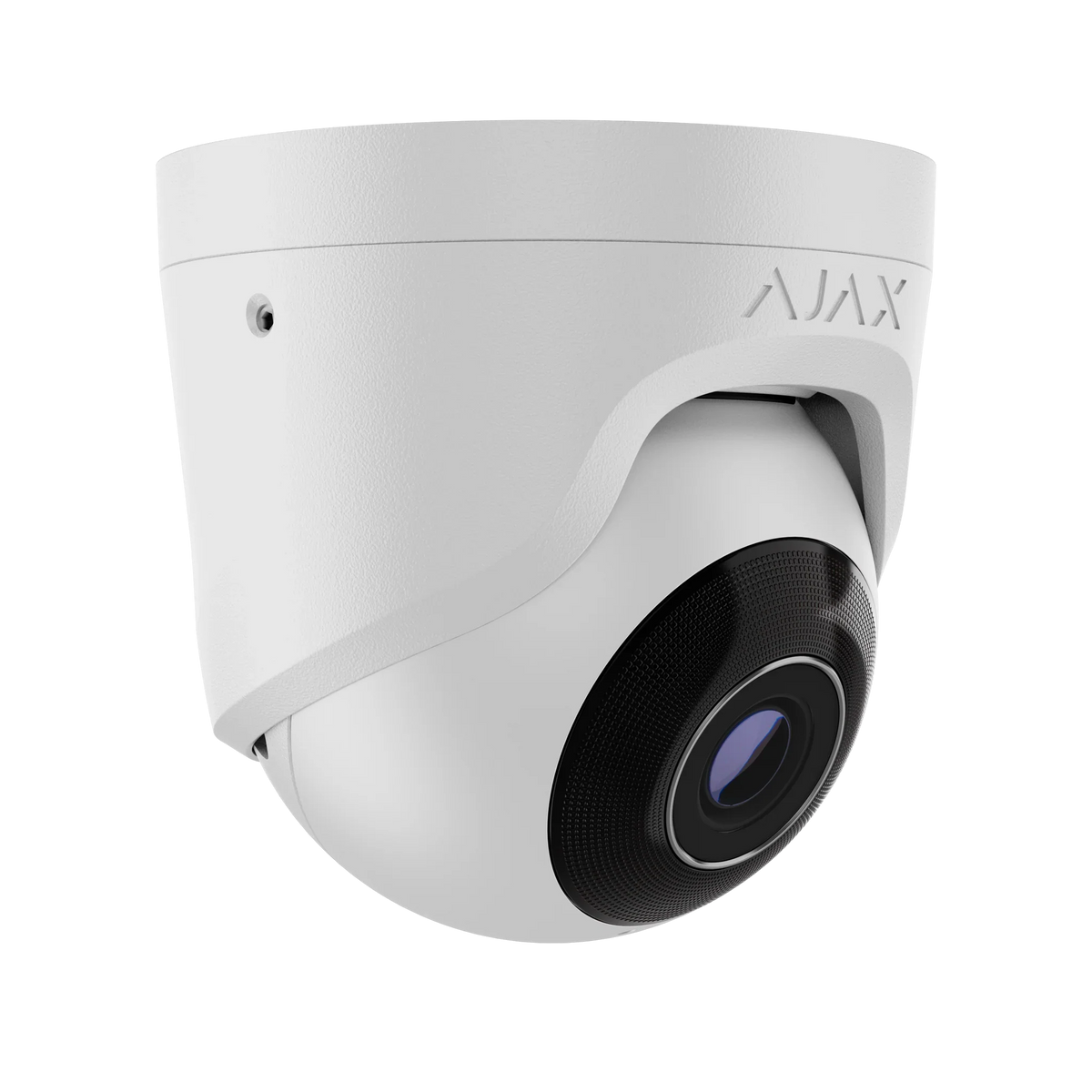

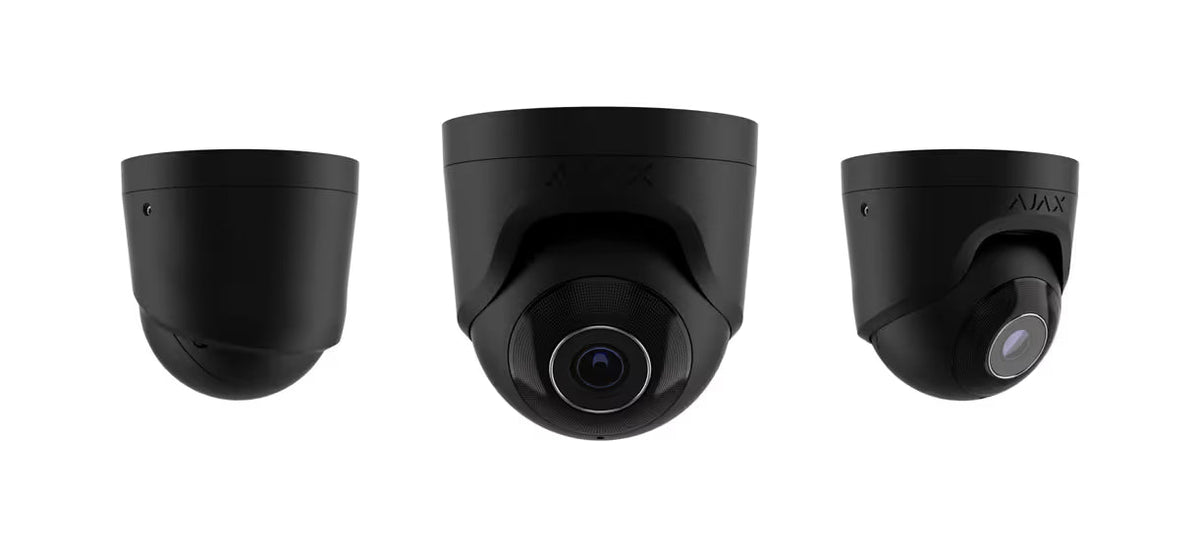

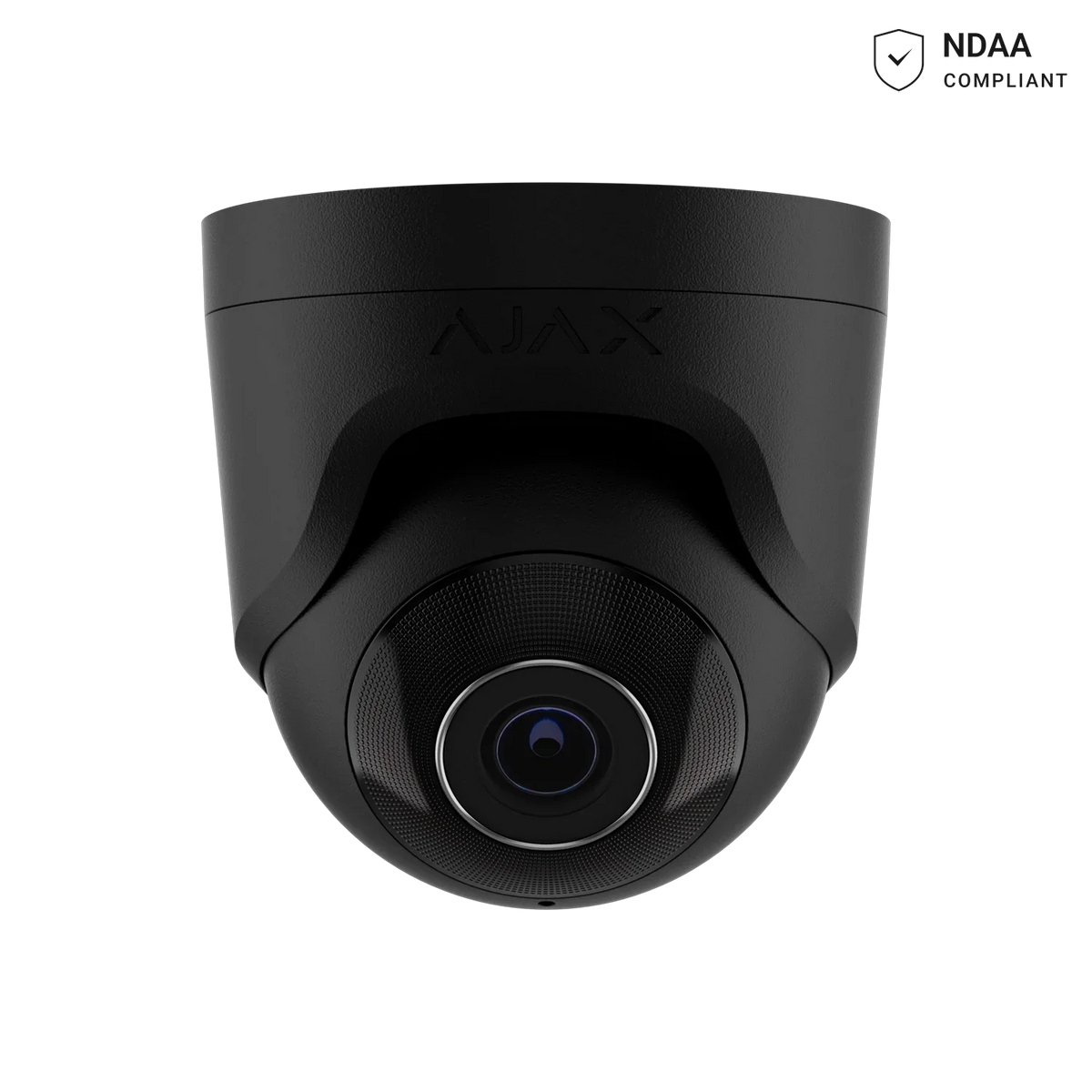

AJAX#64923 Ajax 5MP 2.8mm Turret IP Security Camera – White / Black
AJAX#64923 Ajax 5MP 2.8mm Turret IP Security Camera – White / Black
Product Description
The AJAX#64923 Ajax 5MP 2.8mm Turret IP Security Camera – White / Black is a professional AI-powered wired security camera designed to deliver crystal-clear surveillance for residential, commercial, and industrial applications. Featuring a 5MP image sensor, wide 110° viewing angle, advanced AI object detection, True WDR technology, integrated microphone, and encrypted JetSparrow video transmission, this camera provides reliable and intelligent video monitoring in all lighting conditions.
With recording resolutions up to 2880 × 1620 pixels, smart infrared illumination, support for microSD storage up to 256GB, PoE power capability, and seamless integration with Ajax NVRs and security systems, the TurretCam delivers professional-grade surveillance performance for modern security installations throughout Australia and New Zealand.
What’s Included in the Box
- Ajax TurretCam 5MP 2.8mm Camera
- Installation Template
- Installation Kit
- Quick Start Guide
Main Features
5MP High-Definition Video Surveillance
- Resolution up to 2880 × 1620 px
- Frame rate up to 25 FPS
Wide Viewing Angle
- Viewing angle from 100° to 110°
- Ideal for wide-area coverage
AI-Powered Object Detection
- Detects:
- Humans
- Pets
- Vehicles
Professional Low-Light Performance
- Colour illumination: 0.005 lux
- Black & White: 0 lux
Smart IR Night Vision
- Infrared illumination up to 50 metres
- Automatic IR intensity adjustment
True WDR Technology
- 120 dB True WDR
- Improved visibility in high-contrast environments
Encrypted Video Streaming
- Ajax JetSparrow peer-to-peer video protocol
- Fast and secure video transmission
Integrated Audio Recording
- Built-in microphone
- Multiple audio codec support
Flexible Storage Options
- Ajax NVR compatibility
- MicroSD card support up to 256GB
ONVIF Integration
- ONVIF Profile S
- Partial ONVIF Profile T support
- Third-party VMS compatibility
Indoor & Outdoor Installation
- IP65 weather resistance
- IK08 vandal resistance
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#64923 |
| Product Name | Ajax TurretCam 5MP 2.8mm |
| Camera Type | Wired AI IP Security Camera |
| Sensor Resolution | 5 MP |
| Maximum Resolution | 2880 × 1620 px |
| Lens | 2.8 mm |
| Viewing Angle | 100°–110° |
| Frame Rate | Up to 25 FPS |
| DORI Detection Distance | 65 m |
| Observation Distance | 26 m |
| Recognition Distance | 13 m |
| Identification Distance | 6.5 m |
| Minimum Illumination | 0.005 lux (Colour) |
| Video Protocol | JetSparrow |
| Video Compression | H.265 / H.264 |
| Dynamic Range | 120 dB True WDR |
| AI Detection | Human / Pet / Vehicle |
| IR Illumination | Up to 50 m |
| Microphone | Built-In |
| Audio Codecs | G711-ULAW, G711-ALAW, G726, G722 |
| Ethernet Speed | Up to 100 Mbps |
| Storage | NVR + microSD |
| microSD Capacity | Up to 256 GB |
| ONVIF Support | Profile S / Partial Profile T |
| Power Supply | 12 V DC ±20%, 1 A |
| PoE Support | IEEE 802.3af / 802.3at |
| Power Consumption | Up to 15 W |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | Up to 90% |
| Protection Rating | IP65, IK08 |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 496 g |
| Colour Options | White / Black |
Practical Use Scenarios
Residential Security Monitoring
Protect homes, driveways, entrances, and outdoor areas with AI-powered surveillance.
Commercial & Retail Security
Ideal for offices, retail stores, warehouses, and commercial facilities.
Integrated AJAX Alarm Systems
Provides visual verification when Ajax intrusion detectors trigger alarm events.
Industrial Site Surveillance
Weather-resistant and vandal-resistant design suitable for demanding environments.
Professional CCTV Installations
Supports Ajax NVR systems and third-party ONVIF-compatible VMS platforms.
Warranty Information
Manufacturer Warranty: 24 Months
About Ajax Systems
Ajax Systems is a globally recognized leader in smart security and surveillance technology, delivering advanced intrusion protection, encrypted communication, and intelligent video monitoring solutions trusted worldwide.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels and optimized for professional surveillance installations throughout Australia and New Zealand.
Key advantages include:
- Genuine Ajax Systems product
- AU/NZ compliant operation
- AI-powered video analytics
- Professional-grade True WDR imaging
- Secure encrypted video communication
- Reliable warranty support through authorized suppliers
This ensures customers receive a secure, intelligent, and professional surveillance camera solution suitable for residential and commercial security installations across Australia and New Zealand.
Datasheets & Resources
These resources provide detailed installation instructions, AI configuration guidance, camera setup recommendations, and advanced integration information for professional Ajax installers and surveillance specialists.
FAQs – AJAX#64923
1. What is the AJAX#64923 TurretCam used for?
The AJAX#64923 TurretCam is a 5MP AI-powered IP security camera designed for professional indoor and outdoor video surveillance.
2. What resolution does the AJAX#64923 support?
The AJAX#64923 TurretCam supports video recording up to 2880 × 1620 pixels.
3. Does the AJAX#64923 support AI detection?
Yes, the AJAX#64923 can detect humans, pets, and vehicles using built-in AI analytics.
4. Does the AJAX#64923 support night vision?
Yes, the AJAX#64923 TurretCam includes smart IR illumination with a range of up to 50 metres.
5. Can the AJAX#64923 be powered using PoE?
Yes, the AJAX#64923 supports PoE IEEE 802.3af/at as well as 12V DC power.
6. Is the AJAX#64923 suitable for outdoor installation?
Yes, the AJAX#64923 TurretCam features IP65 weather protection and IK08 vandal resistance for outdoor applications.
