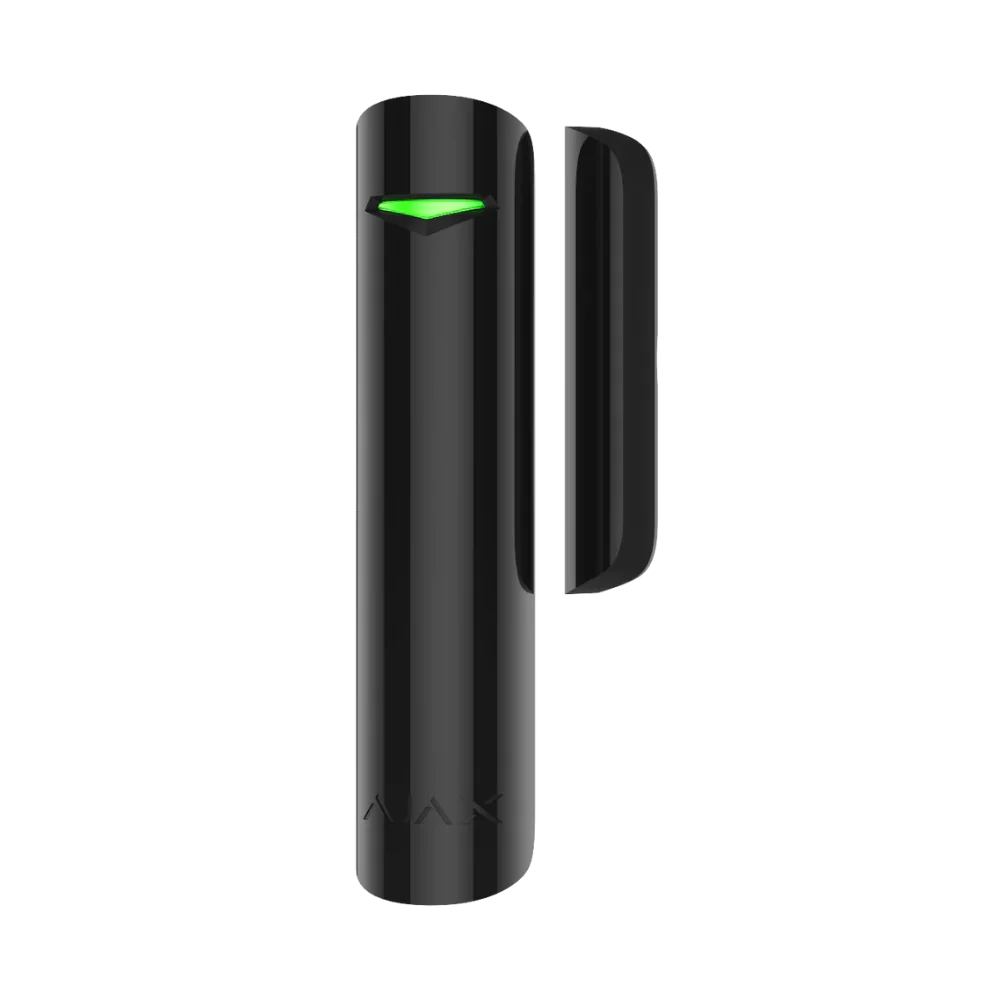

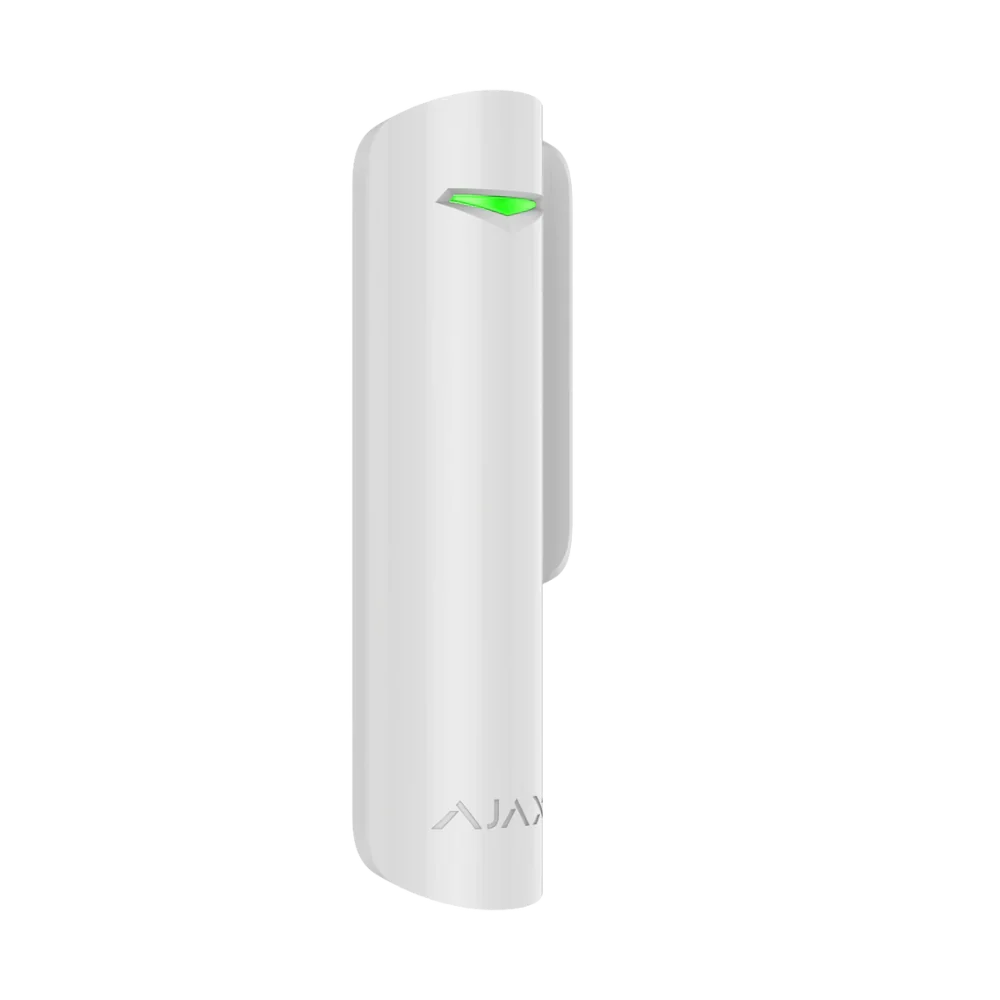

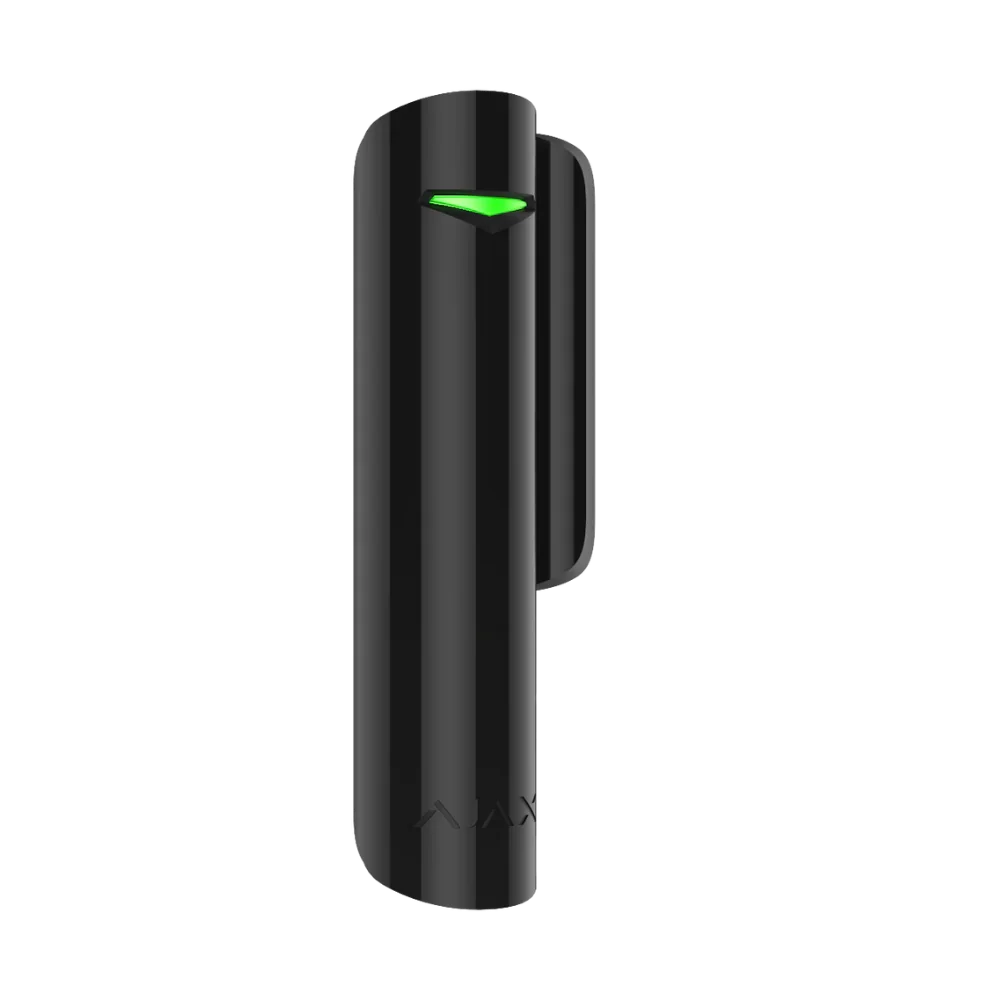

The AJAX#30616 Ajax DoorProtect Jeweller Wireless Door & Window Opening Detector – White / Black is a compact and highly reliable magnetic opening detector designed to protect doors, windows, cabinets, roller shutters, and other entry points against unauthorized access. Using a precision reed switch sensor combined with Ajax’s encrypted Jeweller wireless communication technology, the DoorProtect instantly detects opening events and transmits real-time alerts to the Ajax security system.
Designed for professional residential and commercial security installations, DoorProtect Jeweller includes both small and large magnets for flexible installation, anti-sabotage protection, chime functionality, and support for connecting third-party wired detectors. With wireless communication up to 1200 metres and battery life up to 7 years, this detector provides reliable and low-maintenance perimeter protection across Australia and New Zealand.
What’s Included in the Box
- Ajax DoorProtect Jeweller Detector

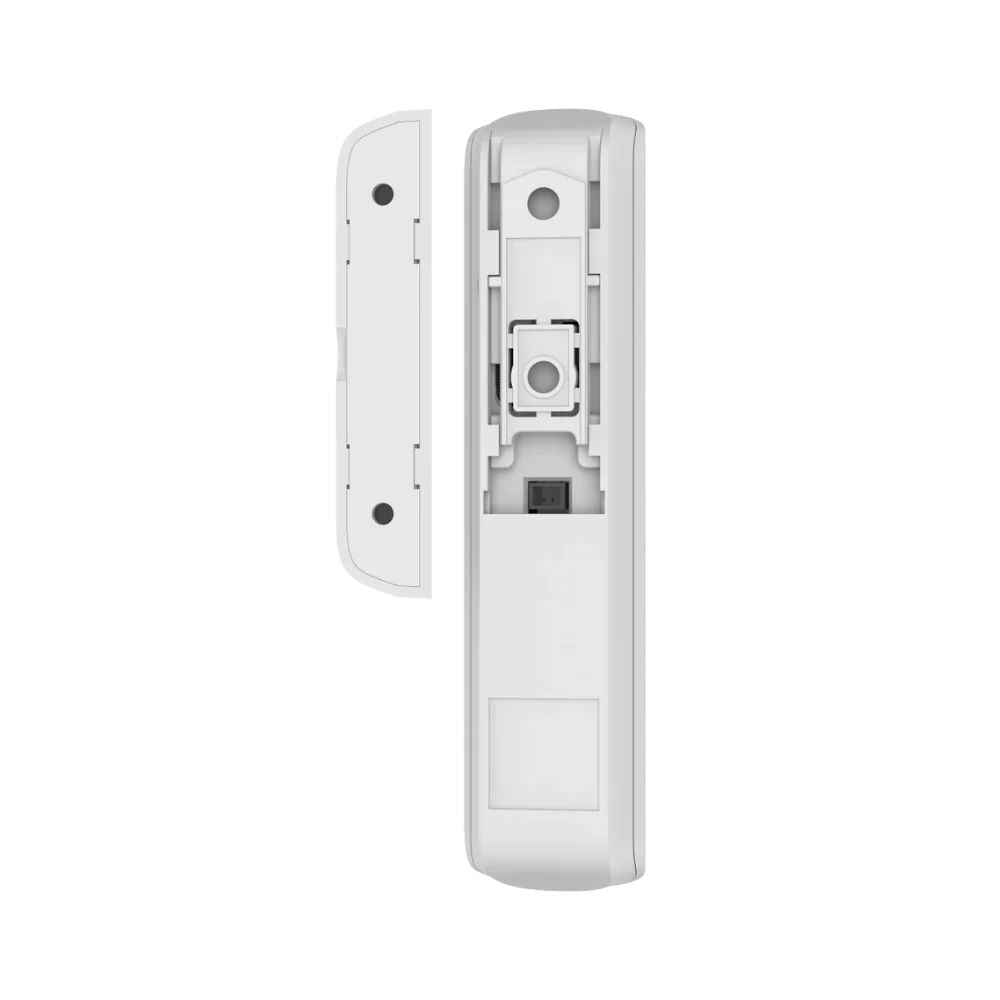

- SmartBracket Mounting Panel
- CR123A Battery (Pre-installed)
- Large Magnet
- Small Magnet
- Outside-Mounted Terminal Clamp
- Installation Kit
- Quick Start GuidE
Main Features
Reliable Door & Window Opening Detection
- Detects opening using precision reed switch sensor
- Suitable for doors, windows, cabinets, and shutters
Flexible Magnet Installation
- Includes:
- Small magnet (up to 1 cm distance)
- Large magnet (up to 2 cm distance)
Encrypted Jeweller Wireless Communication
- Up to 1200 m wireless range
- Dynamic key encryption and anti-jamming protection
Additional Wired Detector Input
- Supports third-party NC wired detectors
- Expands system flexibility
Smart Chime Feature
- Sirens can notify when doors or windows are opened while disarmed
Protection Against Reed Switch Chattering
- Ignores vibrations lasting up to 0.15 seconds
Long Battery Life
- Up to 7 years operation
- Powered by pre-installed CR123A battery
Tamper & Anti-Sabotage Protection
- Alerts if detector is removed or tampered with
- Device authentication protection against spoofing
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#30616 |
| Product Name | Ajax DoorProtect Jeweller |
| Detection Type | Wireless Opening Detector |
| Sensitive Element | Reed Switch |
| Wireless Technology | Jeweller |
| Wireless Range | Up to 1200 m |
| Frequency Bands | 866–926 MHz (region dependent) |
| Radio Signal Modulation | GFSK |
| Magnet Distance | Small: 1 cm / Large: 2 cm |
| Additional Input | NC Wired Detector Input |
| Chime Function | Yes |
| Battery Type | 1 × CR123A |
| Battery Life | Up to 7 years |
| Operating Voltage | 3 V |
| Operating Temperature | −10°C to +40°C |
| Operating Humidity | Up to 75% |
| Protection Rating | IP50 |
| Detector Dimensions | 90 × 20 × 20 mm |
| Detector Weight | 29 g |
| Installation Type | Indoor |
| Colour Options | White / Black |
Practical Use Scenarios
Door & Window Protection
Monitors unauthorized opening of doors and windows in homes and businesses.
Retail & Commercial Security
Ideal for protecting entry points, stockrooms, cabinets, and restricted areas.
Smart AJAX Alarm Systems
Integrates seamlessly with Ajax hubs, sirens, and automation devices.
Hybrid Security Installations
Supports integration with additional wired NC detectors.
Residential Chime Notifications
Provides audible door opening alerts when the system is disarmed.
Warranty Information
Manufacturer Warranty: 24 Months
About Ajax Systems
Ajax Systems is a globally recognized manufacturer of smart wireless security solutions, delivering advanced intrusion protection systems with encrypted communication, intelligent sensors, and professional-grade alarm management trusted worldwide.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels to ensure compatibility with Australian and New Zealand security standards and wireless regulations.
Key advantages include:
- Genuine Ajax Systems product
- AU/NZ compatible wireless operation
- Secure encrypted communication
- Professional installer-friendly integration
- Reliable warranty support through authorized suppliers
This ensures customers receive a secure, compliant, and highly reliable opening detection solution suitable for residential and commercial installations across Australia and New Zealand.
Datasheets & Resources
FAQs – AJAX#30616
1. What is the AJAX#30616 DoorProtect used for?
The AJAX#30616 DoorProtect Jeweller is a wireless opening detector designed for doors, windows, and entry points.
2. What magnets are included with the AJAX#30616?
The AJAX#30616 DoorProtect includes both a small magnet and a large magnet for flexible installation.
3. What is the wireless range of the AJAX#30616?
The AJAX#30616 DoorProtect supports wireless communication up to 1200 metres in open space.
4. Can the AJAX#30616 connect to additional wired detectors?
Yes, the AJAX#30616 supports third-party wired detectors with normally closed (NC) contacts.
5. How long does the battery last in the AJAX#30616?
The AJAX#30616 DoorProtect offers up to 7 years battery life using a CR123A battery.
6. Is the AJAX#30616 suitable for outdoor use?
No, the AJAX#30616 DoorProtect Jeweller is designed for indoor use only.
