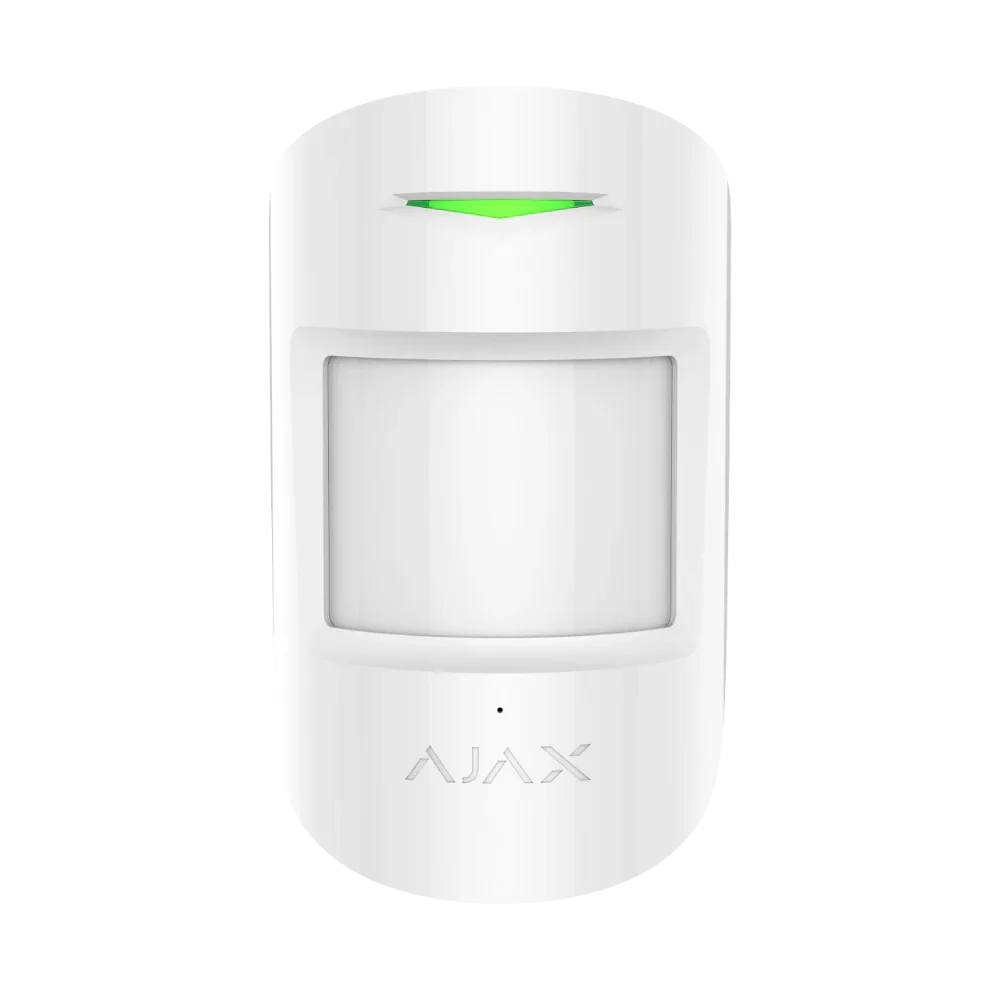

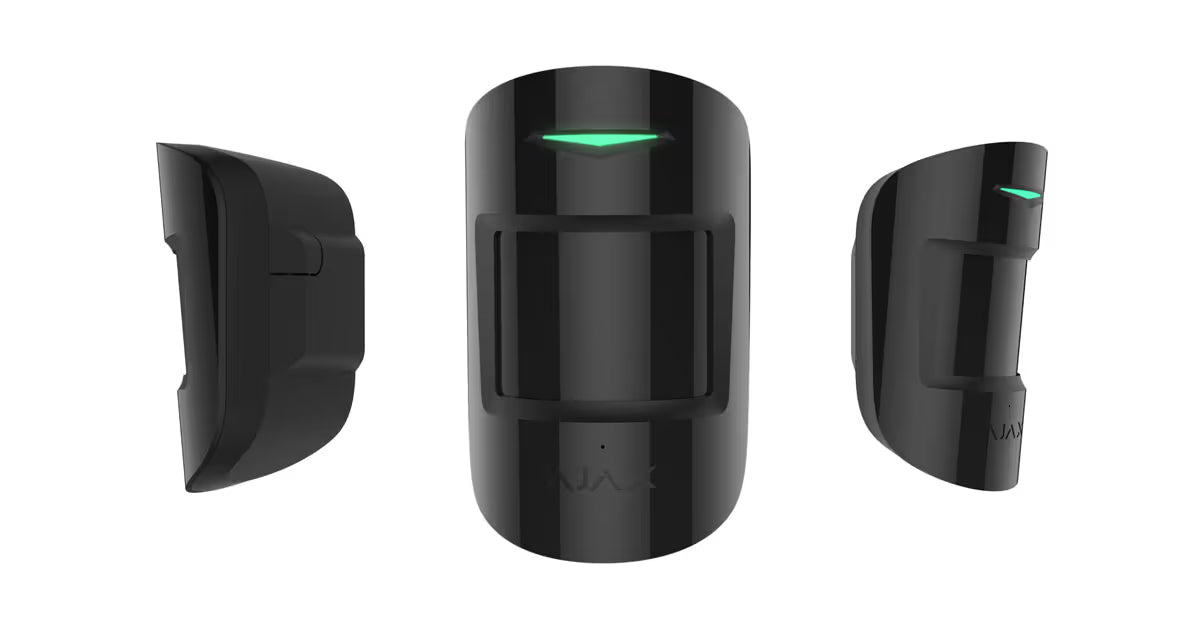

AJAX#30614 Ajax CombiProtect Jeweller Wireless Motion & Glass Break Detector – White / Black | PIR & Acoustic Security Sensor
AJAX#30614 Ajax CombiProtect Jeweller Wireless Motion & Glass Break Detector – White / Black | PIR & Acoustic Security Sensor
The AJAX#30614 Ajax CombiProtect Jeweller Wireless Motion & Glass Break Detector – White / Black is a professional dual-function indoor security sensor combining advanced PIR motion detection with glass break detection technology in a single compact device. Designed for modern residential and commercial security systems, CombiProtect uses intelligent software algorithms and an integrated electret microphone to accurately detect both human movement and glass break events while minimizing false alarms.
Featuring encrypted Jeweller wireless communication, pet immunity support, SmartDetect motion analysis, and DualTone glass break verification, the CombiProtect Jeweller provides comprehensive room protection with reliable wireless performance up to 1200 metres. Ideal for protecting windows, entry points, offices, retail stores, and living spaces, this detector seamlessly integrates into the Ajax security ecosystem for professional installations across Australia and New Zealand.
What’s Included in the Box
- Ajax CombiProtect Jeweller Detector
- SmartBracket Mounting Panel
- CR123A Battery (Pre-installed)
- Installation Kit
- Quick Start Guide
Main Features
Dual Protection Technology
- PIR motion detection
- Integrated glass break detection microphone
Reliable Motion Detection
- Detects movement up to 12 m
- Wide 88.5° horizontal detection angle
Advanced Glass Break Detection
- Detects glass break events from 0.3 to 9 m
- 180° microphone coverage angle
- Supports multiple glass types
False Alarm Prevention
- SmartDetect motion algorithm
- DualTone two-factor glass break verification
Pet Immunity
- Ignores pets up to:
- 20 kg weight
- 50 cm height
Encrypted Wireless Communication
- Ajax Jeweller protocol
- Up to 1200 m communication range
Long Battery Life
- Up to 5 years operation
- Powered by CR123A battery
Tamper Protection
- Alerts if detector is removed or tampered with
- Device authentication against spoofing
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#30614 |
| Product Name | Ajax CombiProtect Jeweller |
| Detection Type | PIR Motion + Glass Break Detector |
| Motion Detection Distance | Up to 12 m |
| Motion Detection Angle | 88.5° horizontal |
| Glass Break Detection Distance | 0.3–9 m |
| Glass Break Detection Angle | 180° |
| Sensitive Elements | PIR Sensor + Electret Microphone |
| Wireless Technology | Jeweller |
| Wireless Range | Up to 1200 m |
| Frequency Bands | 866–926 MHz (region dependent) |
| False Alarm Prevention | SmartDetect + DualTone |
| Pet Immunity | Up to 20 kg / 50 cm |
| Battery Type | 1 × CR123A |
| Battery Life | Up to 5 years |
| Operating Temperature | −10°C to +40°C |
| Operating Humidity | Up to 75% |
| Protection Rating | IP50 |
| Dimensions | 110 × 65 × 50 mm |
| Weight | 92 g |
| Installation Type | Indoor |
| Colour Options | White / Black |
Practical Use Scenarios
Residential Security Systems
Protect living rooms, hallways, and window areas with combined motion and glass break detection.
Retail & Commercial Security
Ideal for stores, offices, and display areas with large glass surfaces.
Window & Entry Point Protection
Detects forced entry through glass breakage and room movement.
Smart AJAX Alarm Installations
Integrates seamlessly with Ajax hubs, sirens, and automation systems.
Warranty Information
Manufacturer Warranty: 24 Months
About Ajax Systems
Ajax Systems is a globally recognized leader in smart wireless security technology, offering advanced intrusion detection, encrypted communication, and professional-grade alarm systems trusted worldwide.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels to ensure compatibility with Australian and New Zealand security standards and wireless regulations.
Key advantages include:
- Genuine Ajax Systems product
- AU/NZ compatible wireless operation
- Advanced false alarm reduction technology
- Professional installer-friendly integration
- Warranty support through authorized suppliers
This ensures customers receive a secure, compliant, and highly reliable dual-function security detection solution suitable for residential and commercial installations across Australia and New Zealand.
Datasheets & Resources
FAQs – AJAX#30614
1. What is the AJAX#30614 CombiProtect Jeweller used for?
The AJAX#30614 CombiProtect Jeweller is a wireless detector that combines motion detection and glass break detection in one device.
2. What is the motion detection range of the AJAX#30614?
The AJAX#30614 detects movement up to 12 metres away.
3. How far can the AJAX#30614 detect glass breaking?
The AJAX#30614 CombiProtect detects glass break events from 0.3 to 9 metres away.
4. Does the AJAX#30614 support pet immunity?
Yes, the AJAX#30614 supports pet immunity for pets up to 20 kg and 50 cm high.
5. Can the AJAX#30614 detect all types of glass?
The AJAX#30614 supports detection of standard, tempered, laminated, wired, insulated, and annealed glass types within specified thickness ranges.
6. Is the AJAX#30614 suitable for outdoor use?
No, the AJAX#30614 CombiProtect Jeweller is designed for indoor use only.
