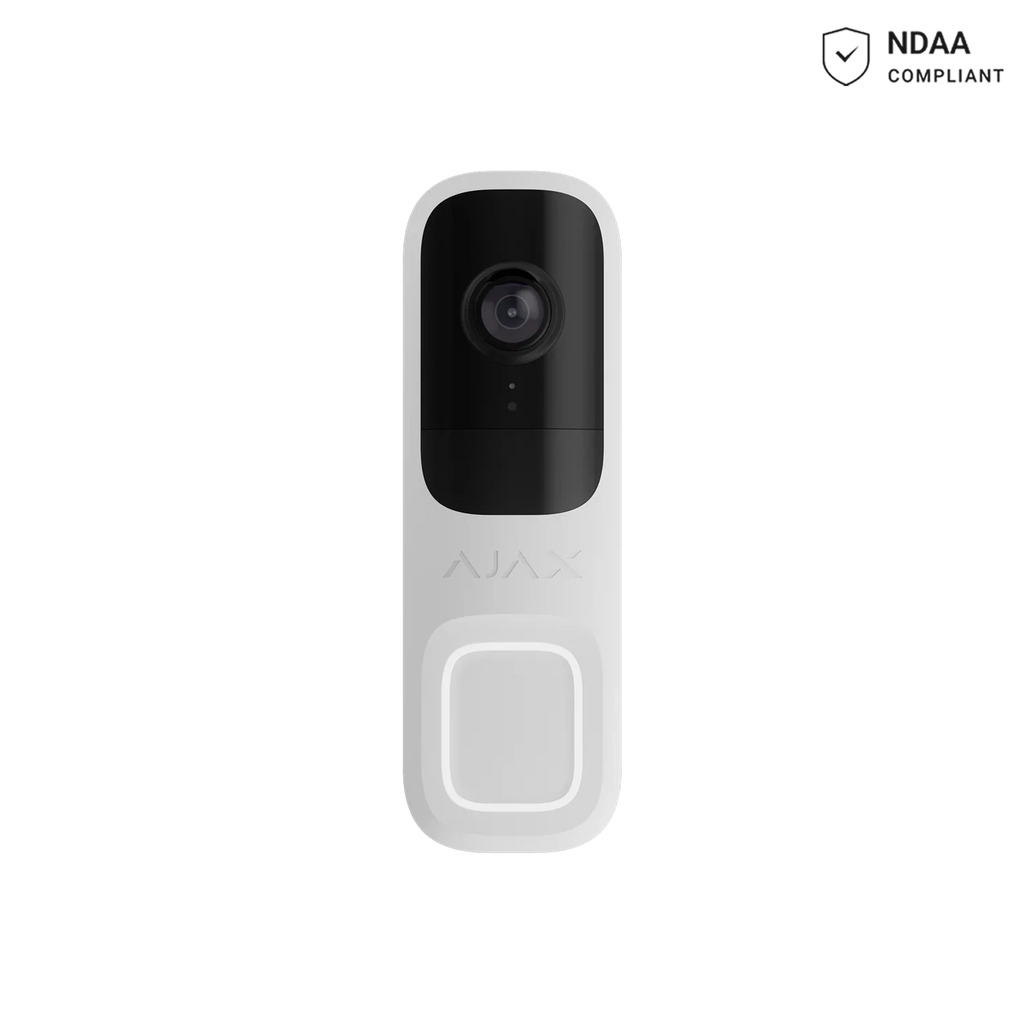

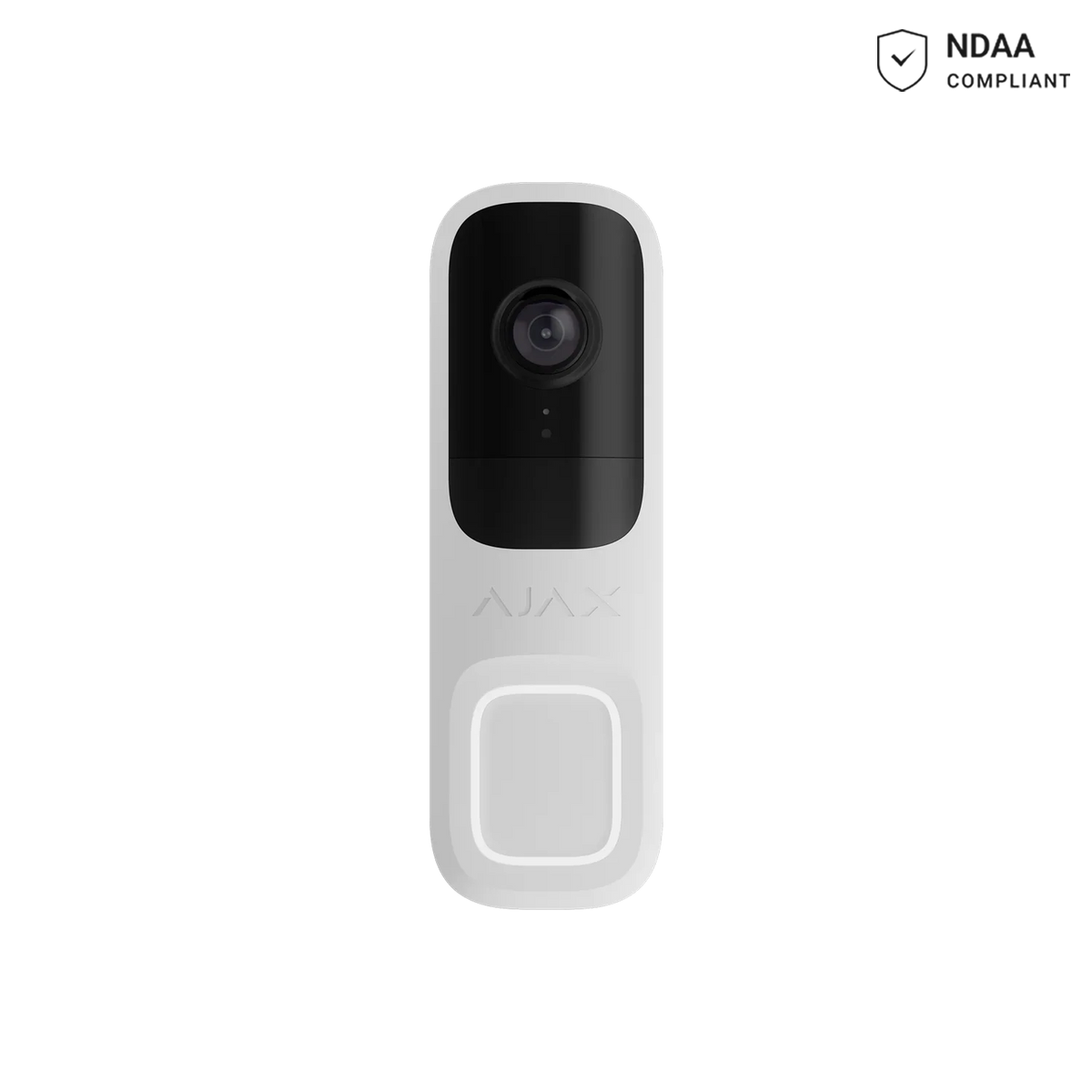

AJAX#116897 Ajax DoorBell Smart Video Doorbell with AI Detection – White / Grey / Graphite / Black
AJAX#116897 Ajax DoorBell Smart Video Doorbell with AI Detection – White / Grey / Graphite / Black
The AJAX#116897 Ajax DoorBell Smart Video Doorbell – White / Grey / Graphite / Black is a premium smart video doorbell featuring a 4MP HDR camera, built-in AI object detection, PIR motion sensor, two-way audio communication, and seamless Ajax ecosystem integration. Designed for both residential and commercial entrances, DoorBell provides real-time visitor monitoring, visual alarm verification, and secure remote access through Ajax mobile and desktop applications.
Powered by Ajax’s advanced JetSparrow encrypted video protocol, the DoorBell delivers fast peer-to-peer video streaming with high-quality image clarity and low latency. Featuring AI recognition for people, pets, and vehicles, smart IR illumination, HDR imaging, and support for Ajax Cloud Storage and NVR recording, this smart doorbell offers professional-grade front-door security and monitoring for modern properties across Australia and New Zealand.
What’s Included in the Box
- Ajax DoorBell
- SmartBracket Mounting Panel
- Wedge Brackets (2 pcs)
- BellKit for Wired Chime Connection
- Installation Kit
- Quick Start Guide
Main Features
4MP HDR Video Doorbell Camera
- 4 MP CMOS image sensor
- Resolution up to 2688 × 1520 px
- HDR image enhancement for bright and dark scenes
Wide Viewing Angles
- Horizontal viewing angle: 155°
- Vertical viewing angle: 90°
AI Object Detection
- Detects:
- People
- Pets
- Vehicles
PIR Motion Detection
- Motion detection range up to 4 metres
- Adjustable sensitivity levels
Two-Way Audio Communication
- Built-in microphone and speaker
- Noise suppression and echo cancellation
Smart IR Illumination
- Up to 6 metres night vision
- Automatic real-time brightness adjustment
Encrypted Video Streaming
- Ajax JetSparrow peer-to-peer video protocol
- H.264 video codec
Multiple Storage Options
- Ajax Cloud Storage
- Ajax NVR support
Wi-Fi + Backup Communication
- Wi-Fi 2.4 GHz connectivity
- Jeweller and Wings backup communication channels
Professional Ajax Integration
- Visual verification of Ajax alarm events
- ONVIF Profile S support
- Partial ONVIF Profile T support
Indoor & Outdoor Installation
- IP54 weather protection
- Suitable for outdoor and indoor use
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#116897 |
| Product Name | Ajax DoorBell |
| Device Type | Smart Video Doorbell |
| Camera Sensor | 4 MP CMOS |
| Video Resolution | Up to 2688 × 1520 px |
| Viewing Angle | 155° horizontal / 90° vertical |
| Video Protocol | JetSparrow |
| Video Codec | H.264 |
| Dynamic Range | HDR |
| AI Detection | People / Pets / Vehicles |
| Motion Detection | PIR + Image Analysis |
| PIR Detection Distance | Up to 4 m |
| IR Illumination | Up to 6 m |
| Audio | Two-way communication |
| Audio Codec | G722 |
| Wi-Fi | 802.11 b/g/n 2.4 GHz |
| Backup Communication | Jeweller + Wings |
| ONVIF Support | Profile S / Partial T |
| Power Supply | 12–24 V DC / 16–24 V AC |
| Battery | Built-in Li-ion 600 mAh |
| Power Consumption | 10 W |
| Operating Temperature | −25°C to +60°C |
| Operating Humidity | Up to 90% |
| Protection Rating | IP54 |
| Dimensions | 145 × 47 × 34 mm |
| Weight | 163 g |
| Colour Options | White / Grey / Graphite / Black |
Practical Use Scenarios
Residential Front Door Security
Monitor visitors, deliveries, and entrances in real time.
Commercial Entry Monitoring
Ideal for offices, retail stores, and apartment buildings.
Smart AJAX Security Systems
Integrates with Ajax detectors, cameras, and automation scenarios.
Remote Visitor Communication
Supports live two-way communication through Ajax apps.
Outdoor Surveillance Applications
Weather-resistant IP54 enclosure for external installations.
Warranty Information
Manufacturer Warranty: 24 Months
About Ajax Systems
Ajax Systems is a globally recognized leader in smart security and surveillance technology, delivering encrypted communication, intelligent intrusion protection, and advanced video monitoring solutions trusted worldwide.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels and optimized for professional smart security installations throughout Australia and New Zealand.
Key advantages include:
- Genuine Ajax Systems product
- AU/NZ compatible Wi-Fi and wireless operation
- Secure encrypted video communication
- Advanced AI-powered object detection
- Professional installer-friendly integration
- Reliable warranty support through authorized suppliers
This ensures customers receive a secure, intelligent, and professional smart video doorbell solution suitable for residential and commercial installations across Australia and New Zealand.
Datasheets & Resources
These resources provide detailed installation guidance, AI configuration instructions, video setup recommendations, and advanced integration information for professional Ajax installers and system integrators.
FAQs – AJAX#116897
1. What is the AJAX#116897 DoorBell used for?
The AJAX#116897 DoorBell is a smart video doorbell designed for visitor monitoring, motion detection, and two-way communication.
2. Does the AJAX#116897 DoorBell support AI detection?
Yes, the AJAX#116897 DoorBell supports AI detection for people, pets, and vehicles.
3. What video resolution does the AJAX#116897 DoorBell support?
The AJAX#116897 supports video resolution up to 2688 × 1520 px.
4. Does the AJAX#116897 DoorBell support night vision?
Yes, the AJAX#116897 DoorBell includes smart IR illumination up to 6 metres.
5. Can the AJAX#116897 DoorBell integrate with Ajax alarm systems?
Yes, the AJAX#116897 integrates fully with Ajax security systems and supports visual alarm verification scenarios.
6. Is the AJAX#116897 DoorBell suitable for outdoor installation?
Yes, the AJAX#116897 DoorBell is suitable for both indoor and outdoor use with an IP54-rated enclosure.
